Understanding Operating Load Calculations for Water Control Gates

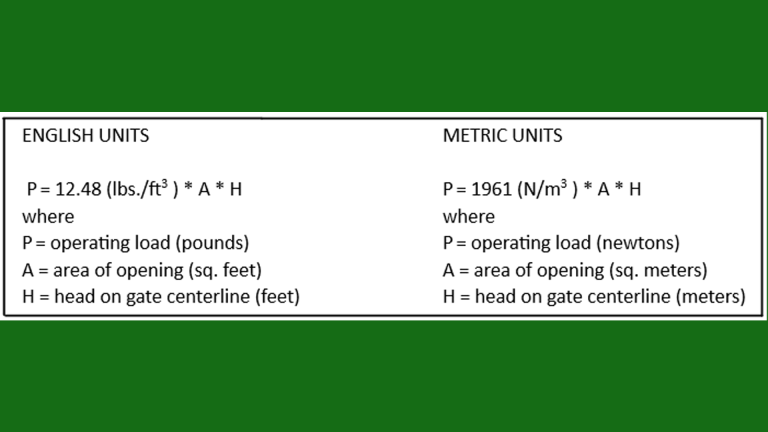

At Whipps, Inc., ensuring the optimal performance and safety of water control gates is our top priority. A critical aspect of this process is accurately calculating operating loads. This calculation helps determine the appropriate manual or powered actuator for operating the gate efficiently. Let’s dive into the key formula and considerations for operating load calculations.Operating Load Formula
Important Notes
- Initial Operating Loads: Maximum operating loads occur during the first few inches of gate movement while opening or closing. These loads decrease significantly once the gate is fully operational.
- Excluding Gate and Stem Weight: The formula provided does not include the weight of the slide or stem. While these weights are often negligible for high-head applications, they may contribute significantly to the total load in low-head scenarios. It’s essential to account for this added weight when evaluating the overall maximum operating load.
- Manual and Powered Actuators: Manual operators are carefully selected to ensure the handwheel or hand crank requires no more than 40 pounds of effort. For assistance in selecting powered actuators, consult our team of experts for guidance.
Why Accurate Calculations Matter
Precise operating load calculations ensure the safe and reliable operation of water control gates under varying conditions. Using the appropriate formula for your unit system (English or Metric) helps you tailor your design for maximum efficiency while safeguarding the equipment against unnecessary strain or damage.Let Us Help You with Your Calculations
If you’re facing challenges with operating load calculations, such as interpreting the formula or adjusting for specific scenarios, Whipps, Inc. is here to assist. Our engineering team can provide tailored solutions and additional guidance to address your unique project needs.
Ready to optimize your gate operations? Contact Whipps, Inc. today to learn more about our industry-leading expertise and custom water control solutions!
